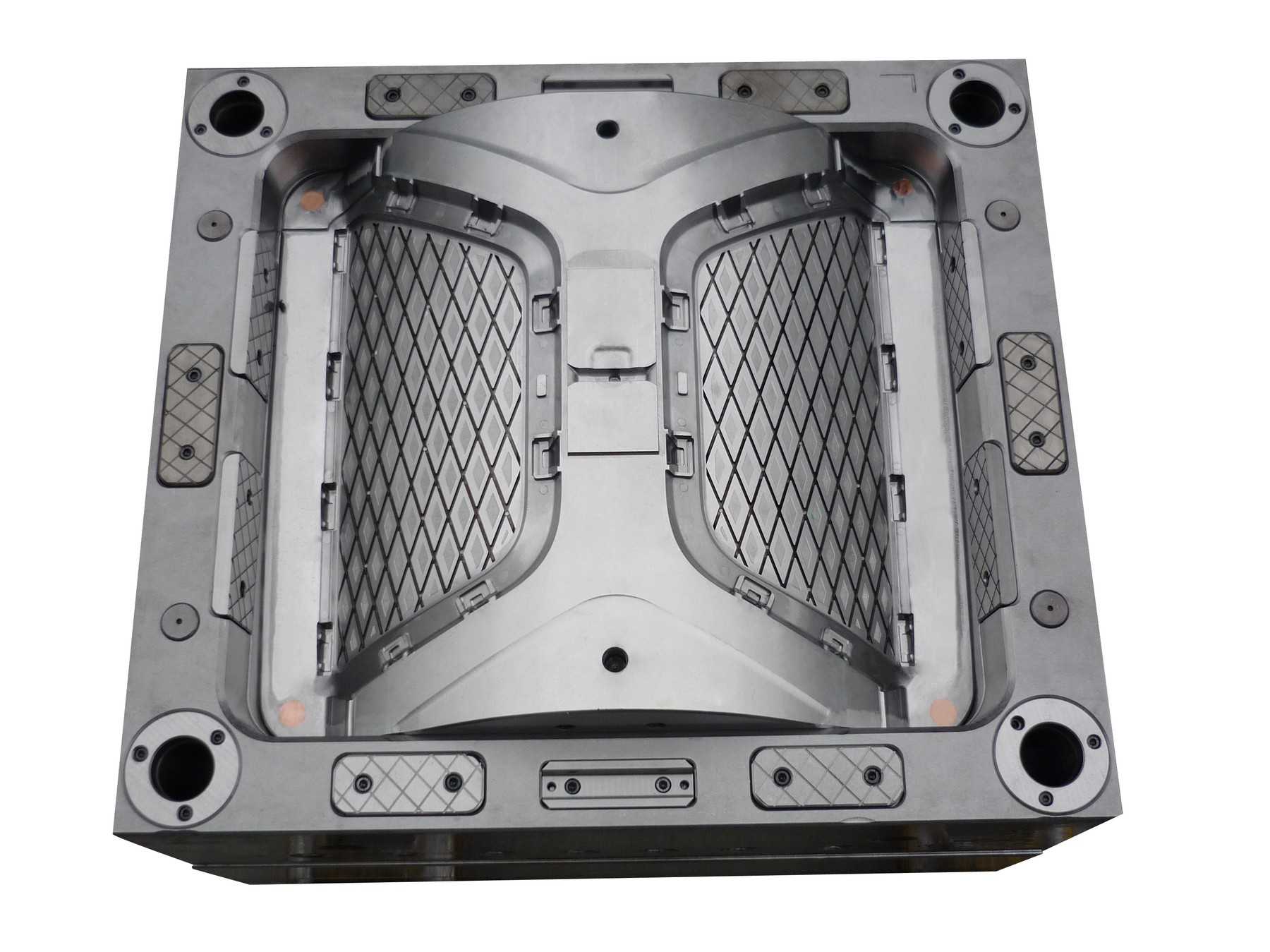

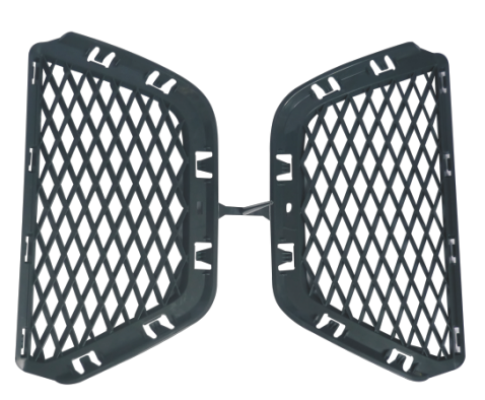

Grille Mould

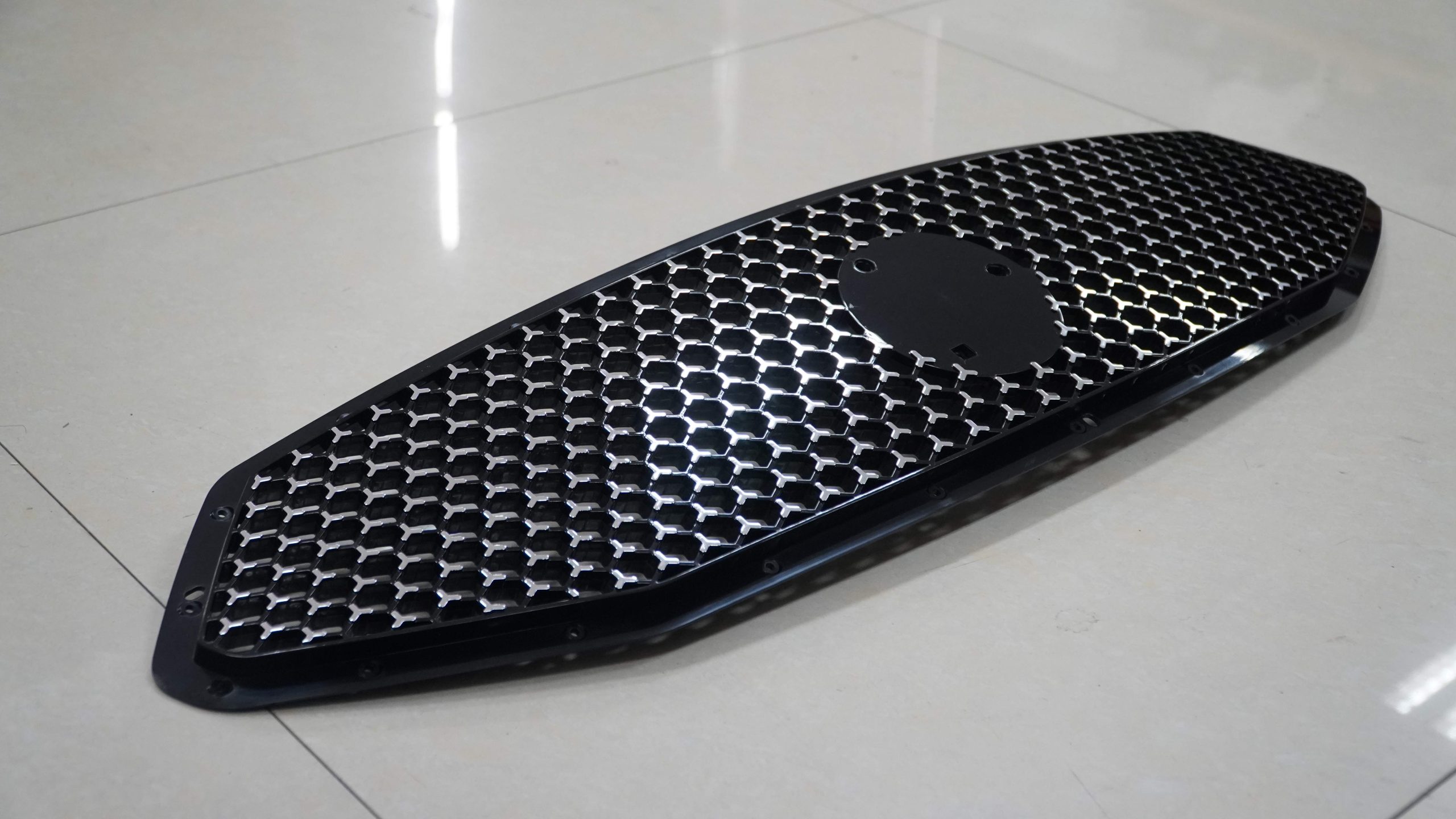

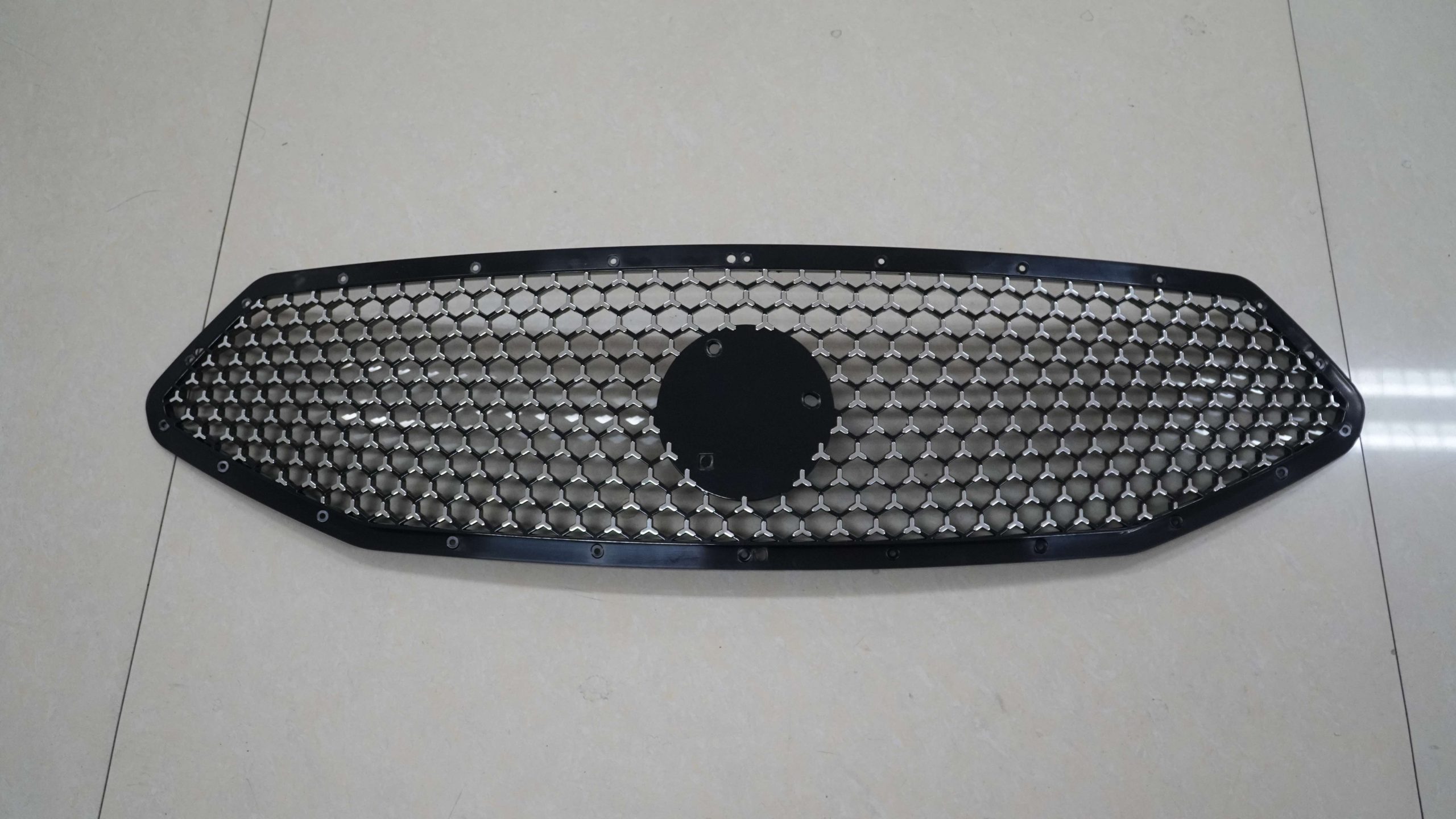

As a core visual and functional component of the vehicle front end, the automotive grille demands exceptionally high precision, structural complexity, and surface quality from its mould. Leveraging deep expertise in the field of injection moulds for automotive components, SINO AUTO MOULD provides complete grille mould solutions for customers, from concept design to mass production.
We specialize in mould development for various materials (such as ABS, PP, PC/ABS) and processes (high-gloss, matte, electroplating, and other surface finishes), ensuring that the grille product fully meets OEM standards in terms of dimensional stability, assembly precision, and aesthetic appeal.
Our automotive grille moulds adopt a modular design approach, balancing production efficiency with ease of maintenance, helping customers achieve low-cost, high-quality mass production.
Bumper Mould Specifications
| Grille Mould Cavity Steel | 2344 | Compatible Injection Moulding Machine | 1200 Ton |
| Grille Mould Core Steel | 718H | Raw Material (Example) | ABS |
| Mould Base Standard / Steel | 45# | Steel for Sliders, Inserts, Lifters | NAK80 / FDAC |
| Injection Moulding Process | High-Gloss Injection | Number of Cavities | 1 x 1 |
| Cycle Time | 60s - 70s | Hot Runner System Type | Integrated Hot Runner |
| Manufacturing Lead Time | 50 - 60 days |
Grille Mould Quality Essentials
Ensuring the long-term stability and high-quality output of grille moulds is a core objective of SINO AUTO MOULD’s quality system. We strictly control the following quality essentials for grille moulds:
Dimensional & Assembly Precision:Utilizing high-precision machining and temperature-controlled environments to ensure micron-level accuracy of the mould cavity, sliders, and inserts, guaranteeing a perfect match between the grille and surrounding components like headlights and body panels.

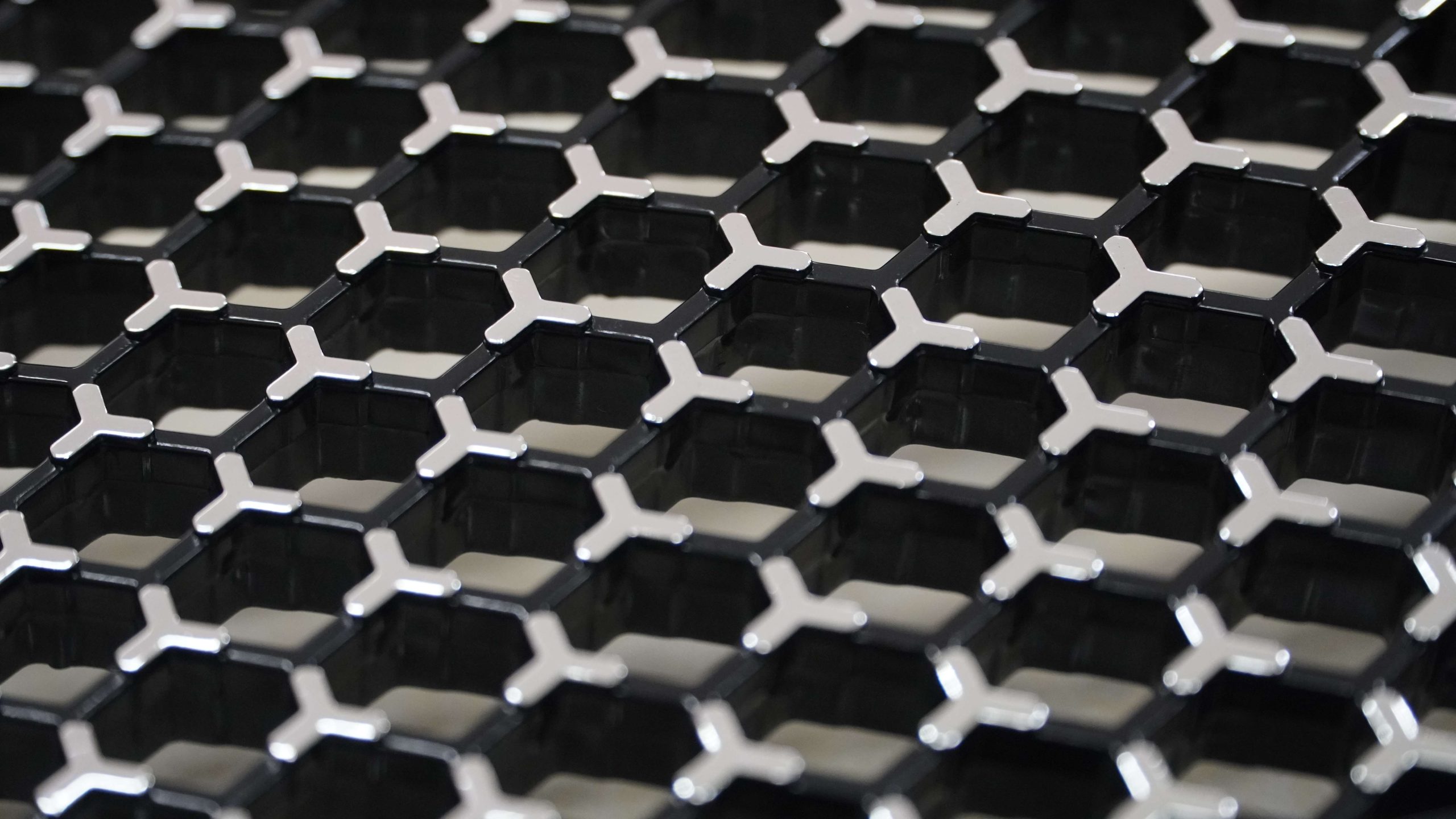

Surface Finish & Texture Consistency:Employing advanced texturing, polishing, and laser etching techniques to achieve high uniformity of textures on complex curved surfaces, meeting various visual effect requirements such as high-gloss, metallic-like, and carbon fiber finishes.
Material Selection & Heat Treatment:Core mould components are made from high-quality pre-hardened steel or undergo vacuum heat treatment to ensure high wear resistance, corrosion resistance, and dimensional stability over long-term use, extending mould life.
Runner & Cooling System Optimization:Scientifically designing hot runner systems and conformal cooling channels through Mould Flow Analysis (Mouldflow), effectively controlling the moulding cycle, reducing weld lines, and improving product surface quality and production efficiency.
Grille Mould Machining Essentials
Combining advanced equipment and process knowledge, SINO AUTO MOULD strives for excellence in the machining essentials of grille moulds to ensure superior mould performance:
Digital Design & Precision Programming:Utilizing 3D CAD/CAM systems throughout the process for designing highly complex parting surfaces and slider structures. Employing 5-axis simultaneous CNC machining for high-precision, high-efficiency cavity machining.
Large Complex Surface Machining:Addressing the unique porous, thin-walled, and large-radius features of grilles by combining High-Speed Machining (HSM) with precision Electrical Discharge Machining (EDM) to ensure smooth surfaces and sharp details.
Precise Control of Multi-Slider & Lifter Mechanisms:For complex functional components like hidden grilles or Active Grille Shutters (AGS), the machining and assembly accuracy of internal moving mechanisms is crucial for smooth operation and longevity. We achieve zero-error fit through precision grinding and proprietary mould fitting processes.
Mould Trials & Continuous Optimization:Conducting rigorous moulding process validation in our in-house trial workshop, collecting data, and making targeted adjustments to the mould until optimal injection conditions are achieved, providing customers with plug-and-play, mature moulds.

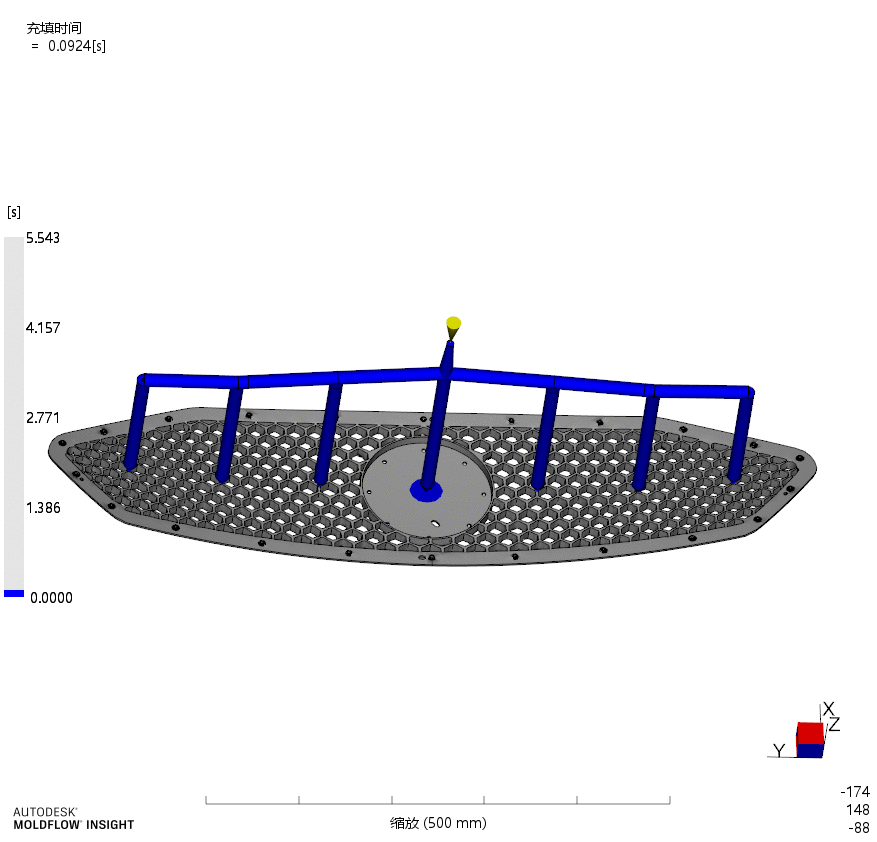

Grille Mould Flow Analysis
